How to Build a True Six-Axis Robot Manipulator on a 3D Printer
Most DIY robot arms from the internet disappoint the moment you finish assembling them. Usually these are flimsy acrylic constructions with cheap blue SG90 servo motors that tremble at the slightest draft and can barely hold an empty plastic cup. At the other end of the spectrum are industrial manipulators like KUKA or Universal Robots, but their price tags start at the cost of a decent car.

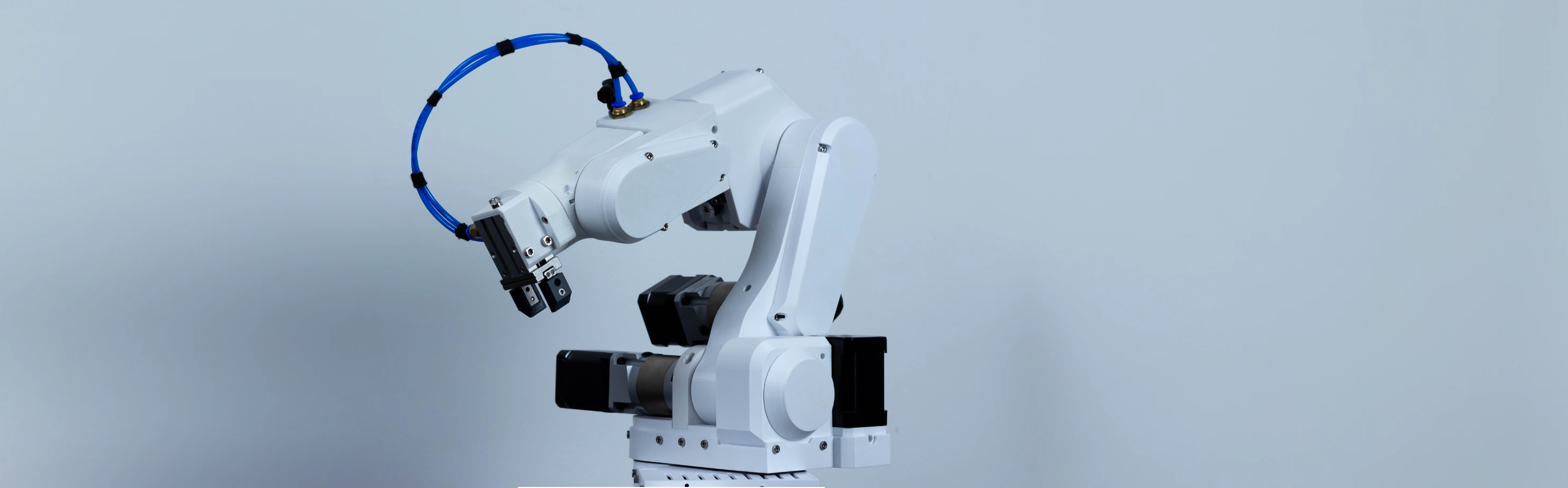

The PAROL6 project tries to bridge this gap. The author developed a desktop six-axis manipulator that closely mimics industrial robots in kinematics, control architecture, and precision, while still being buildable at home on a standard 3D printer.
What's Inside the Project
The repository contains complete documentation for self-replication: STL files for printing parts, a detailed bill of materials (BOM), wiring diagrams, and calibration instructions. The project is licensed under GPLv3, so all source code is open.
The main difference between PAROL6 and typical DIY projects is the mechanical design. It features a true six degrees of freedom (6-DOF). The joints use stepper motors with belt reducers and bearings, providing rigidity and repeatability of movements. The robot doesn't dangle in the air and executes trajectories with smooth dynamics.
If you don't want to order dozens of items from different websites and source screws of the right length, the project authors sell ready-made component kits on their website. But if your 3D printer is already warming up, nothing stops you from breaking out the filament and building everything from scratch yourself.
Software Stack and Control
Hardware without proper software turns into plastic decor. In the case of PAROL6, a well-thought-out control infrastructure has already grown up around the manipulator:
- Proprietary Commander. A desktop application with a graphical interface for basic setup, calibration, manual joint movement along axes, and creating simple point-to-point programs.
- Python API. For those who want to automate processes through code. Through the API you can send control commands in Cartesian coordinates, read joint angles, and write your own interaction scripts.
- ROS 2 and MoveIt integration. A full pipeline for roboticists. The repository contains ready-made packages for simulation, inverse kinematics calculation, and trajectory planning with obstacle avoidance.
The code for movement via Python looks minimalistic and clear:
from parol6 import Parol6Robot
# Подключаемся к роботу по последовательному порту
robot = Parol6Robot(port="/dev/ttyUSB0")
robot.connect()
# Домашняя позиция
robot.home()
# Перемещение рабочего органа в заданную точку (X, Y, Z, Roll, Pitch, Yaw)
target_pose = [200, 0, 150, 0, 90, 0]
robot.move_linear(target_pose, speed=50)
# Управление захватом
robot.open_gripper()
robot.close_gripper()
What the Community Does With It
An active community has quickly formed around the project, writing their own modules and extensions.
One interesting project is integration with multimodal models. Developers attached a webcam to the manipulator and connected the Python API to Gemini Vision. As a result, the robot understands text commands like "pick up the green part and put it in the left box," recognizes objects in the frame on its own, and builds a grasping trajectory.
Other enthusiasts built a web interface for controlling the arm directly from a tablet browser, set up automatic tic-tac-toe with board recognition via OpenCV, and integrated the robot with the LeRobot reinforcement learning platform.
Assembly Challenges and Nuances
Don't expect this to be a weekend project. Assembling PAROL6 requires care and a basic understanding of mechanics:
- Printing the parts takes a long time. The structural components experience serious loads, so regular PLA won't work here — you need PETG, ABS, or ASA with high infill and precise geometry.
- Belt tension and shaft alignment affect backlash. If you make mistakes installing the reducers, positioning accuracy will noticeably decrease.
- Wiring inside moving joints requires flexible cables with protection against chafing. Otherwise, after a few hundred movement cycles, the wires inside the insulation will simply break.
The repository contains a detailed safety warning. The manipulator runs on a powerful power supply, and the torque of the stepper motors on the lever arm is quite enough to painfully pinch your fingers during careless debugging.
Who Will Find This Project Useful
PAROL6 is great for those studying robotics, teaching it, or writing computer vision algorithms and wanting to test code on a real manipulator rather than just in Gazebo.
It's a working tool for home labs, student projects, and testing pick-and-place tasks. The best way to start is by studying the BOM file and the project's official documentation to beforehand assess the scope of work and the list of required components.
